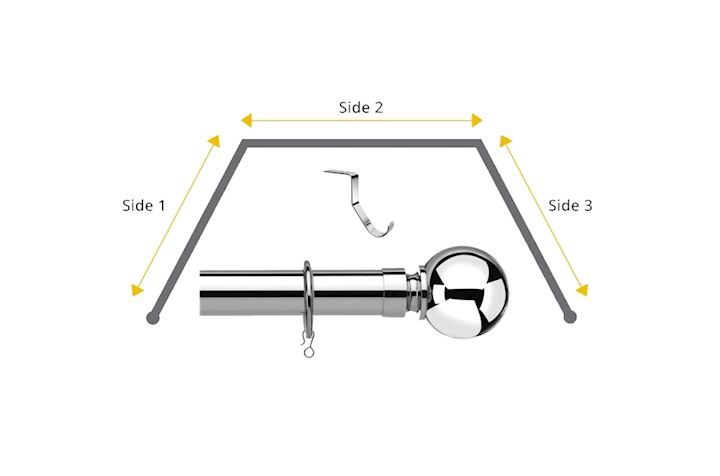

Universal 28mm Ball 3 Sided Bay Window Ceiling Fitted Curtain Pole Chrome

Elevate your home decor with our Universal 28mm Ball 3 Sided Bay Window Ceiling Fitted Curtain Pole in sleek chrome. Designed for bay windows, this stylish curtain pole features a modern ball finial and a robust 28mm diameter, ensuring both durability and elegance. Its ceiling-mounted design allows for seamless installation, making it the perfect choice for hanging your favorite curtains while enhancing the beauty of your living space.

A quality, budget bay windows pole complete with ball finials, passing rings, ceiling fitted pass-over brackets and corner joints, all in a shiny chrome finish.

The passing rings are not nylon lined. They have a small section cut out of them to allow them to pass over the wall fixed brackets and allow your curtains to be fully opended, letting in maximum light to your room. The passing rings only work correctly when used with curtains that have lots of fabric tightly gathered together in the heading of the curtain. The top pocket on the curtain heading tape must be used so that the top of the curtain sits beneath the bottom of the rings. If your curtain heading does not have lots fabric tightly gathered together, the curtains will pull down on the rings when opening and closing and this will prevent the rings from passing over the brackets.

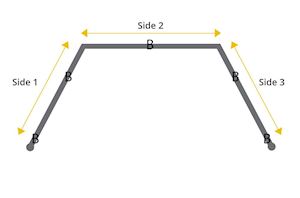

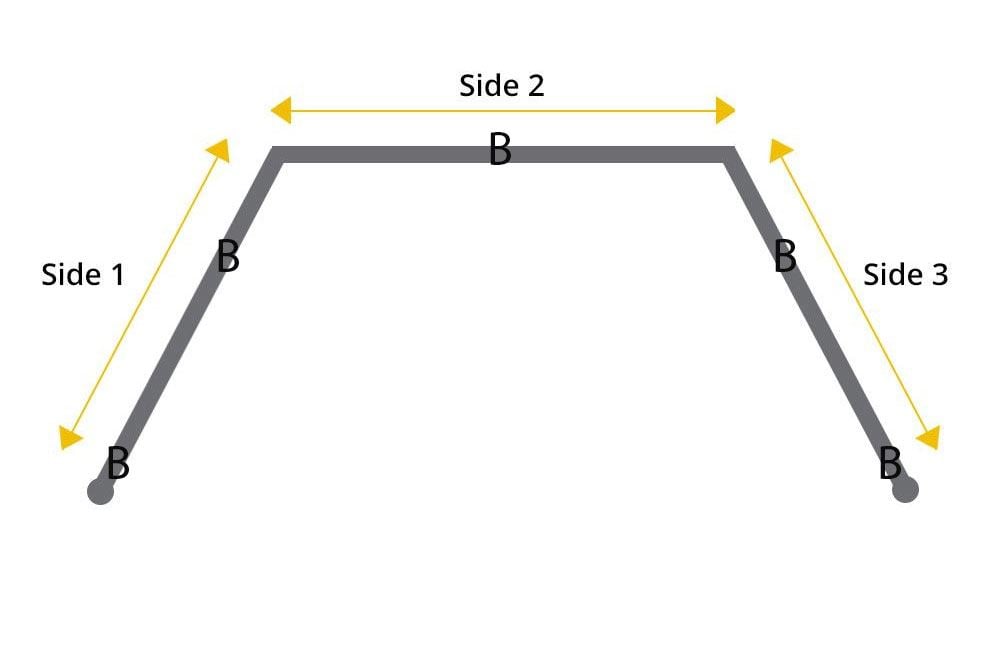

The brackets supplied (5) are at a fixed position and fitted only to the ceiling. The bracket has a drop of 81.5mm (8.15cm) from the top of the bracket to the cup where the pole will sit. We advise having around 85mm (8.5cm) gap from the ceiling to the start of the window panel for these brackets to sit perfectly. Any less than this will make the pole sit too low below the window panel and this will not work well with your curtains stopping light from seeping in through the gap above the pole. The back plate of the bracket that fixes in place with screws has a length of 48.5mm (4.85cm). Please see the diagram provided to help you view the bracket dimension. Only 5 brackets are supplied giving you less obstruction across the bay pole. We advise placing 1 at the end of each side of the bay, with 1 in the middle and the remaining 2 along the pole. Please see the image where the letter B is placed for the bracket arrangement. We recommend using only a light to medium weighted curtain as the low number of brackets used in this bay cannot withhold heavy curtains. If you find the structure unstable you may want to add only a couple of extra brackets (this will be your choice and extra cost involved). But we find from using less brackets helps the rings glide better across.

We understand that not all bay windows are the same size, so our poles can be easily cut to size using a small fine tooth saw.

The corner joints will allow the rings to glide around any angle from 110 to 180 degrees, meaning that this chrome Universal 28mm Ball bay window curtain pole is fit for most 3 sided bay windows.

Note: We do not recommend this system for bay windows with 90 degree angles, as the bend will be too sharp for the rings to glide around smoothly.
