Speedy 28mm Eyelet Bay Window Pole Chrome

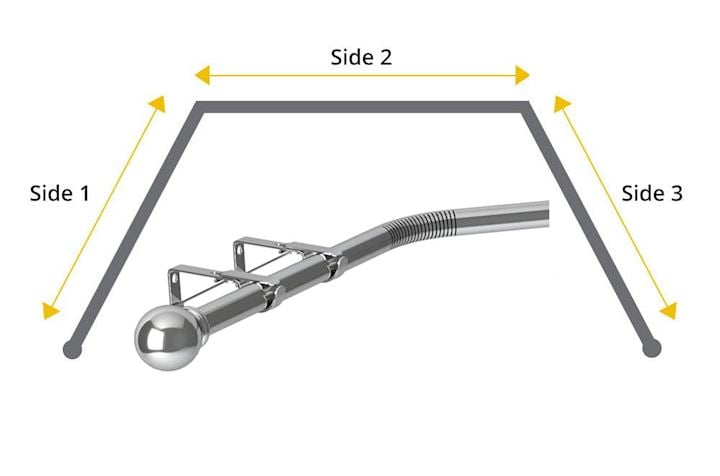

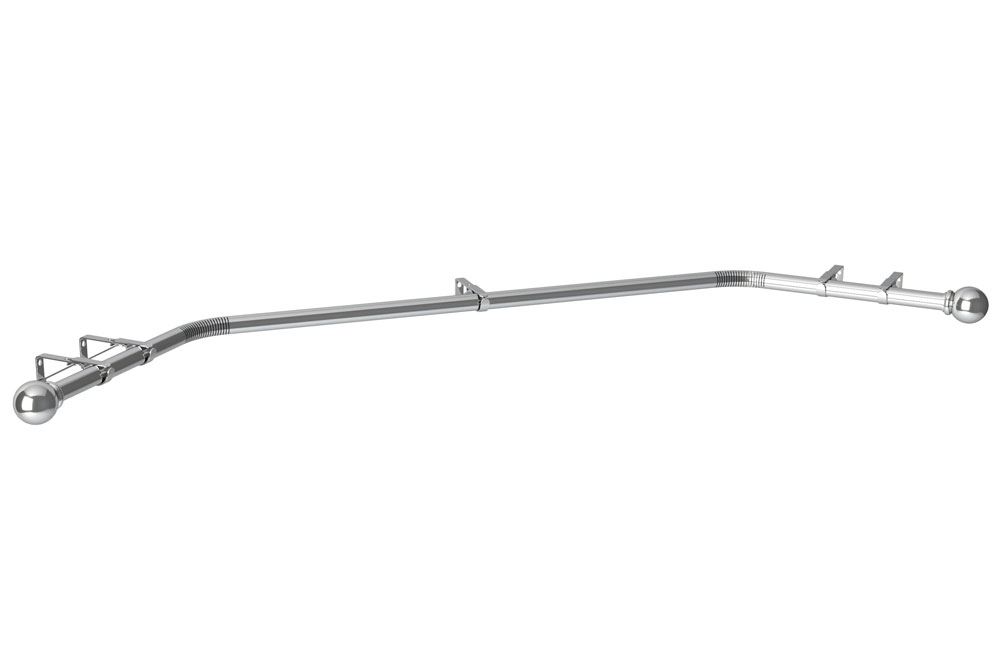

This Speedy eyelet bay window pole is supplied with 2 x 200cm poles, finished in chrome. Both poles have a section that is serrated to allow the pole to be hand bent to an angle that is perfect for your bay window The serrations are approximately 80cm from one side and 120cm from the other side. A joining piece is supplied to join the 2 poles together are the centre of the bay.

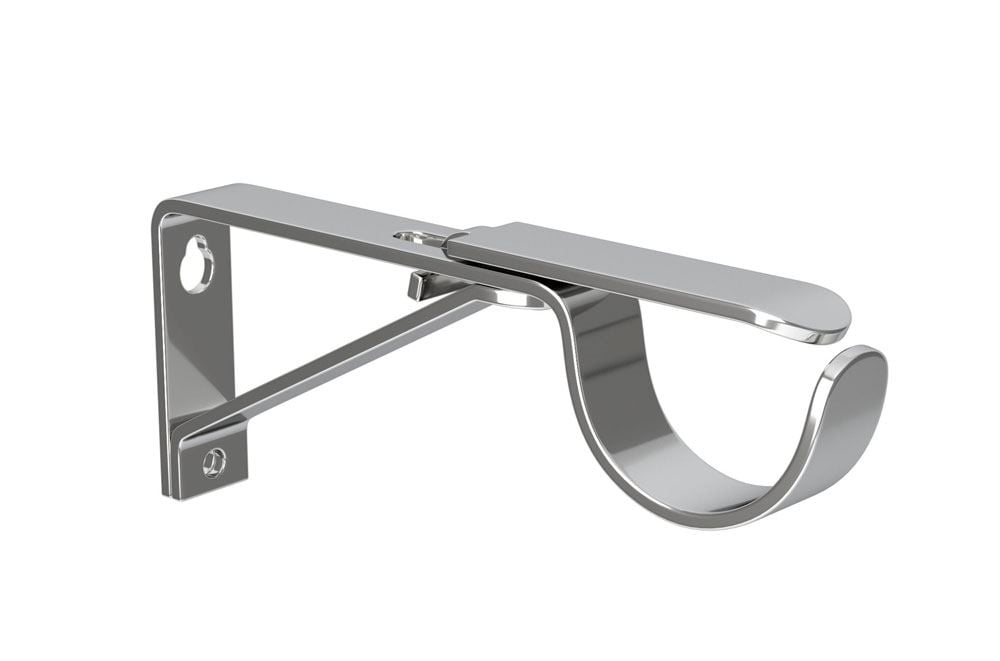

There are 5 wall fixing brackets supplied with the kit – 1 for the centre of the bay and 2 on each end, spaced approximately 10cm apart from one another. This spacing, together with the design of the brackets and the serrated pole, means that no brackets are needed to support the corners. As there are no brackets near the corners, your eyelet curtain will pull easily around the bends. The brackets can be used as ceiling fixed too! Just ensure you have the space between the start of the window panel and the ceiling. The bracket length is 12.5cm and this is fixed. The cup of the bracket has a retaining bar which is loosened (from the screw) allowing you to place the pole inside the cup and retighten the bar. This retaining bar will stop the pole from sliding upwards and out of the bracket cup. The back plate of the bracket is 5cm.

We understand that not all bay windows are the same size, so our poles can be easily cut to size using a small fine tooth saw.

The eyelets in your curtain for this Speedy 28mm eyelet bay window pole kit in antique brass need to be of a 40mm diameter, with a maximum weight of no more than 11kg.

Please note that there are no rings supplied with this kit.

Note: We do not recommend this system for bay windows with 90 degree angles, as the bend will be too sharp for the rings to glide around smoothly.
